Thermo 300
W : 1,010 / L : 505 / H : 355(mm)
Weight : 22kg
W : 1,026 / L : 650 / H : 185(mm)
Weight : 21kg
T-1400 refrigeration capacity (Ambient 30ºC / 2400RPM / Return air to evaporator)
Controller
: Main automatic temperature controller (Relay box separation type) Automatic recovery during compressor input error, built-in heat-resisting case CPU,Consistent vehicle battery monitoring function
Option
: Temperature recording instrument
Compressor
: QP15 or TM15 (Displacement : 146cc / 6 Cylinders)
Thermo 400
W : 1,015 / L : 450/ H : 410(mm)
Weight : 27.5kg
W : 1,235 / L : 700 / H : 150(mm)
Weight : 23.5kg
T-2500 refrigerating capacity (Ambient 30ºC / 2400RPM)
Controller
: Main automatic temperature controller (Relay box separation type)
Compressor
: TM16 (Displacement : 163cc / 6 Cylinders or QP16)
Thermo 500
W : 1,020 / L : 470 / H : 450(mm)
Weight : 31.5kg
W : 1,355 / L : 700 / H : 187(mm)
Weight : 30kg
T-3000 refrigerating capacity (Ambient 30ºC / 2400RPM)
Controller
: Main automatic temperature controller (Relay box separation type)
Compressor
: TM21 (Displacement : 215cc / 10 Cylinders)

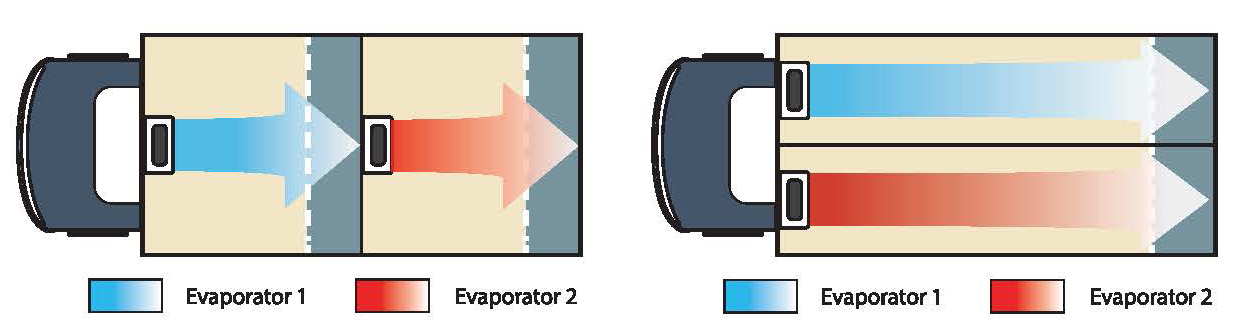

T-3000MT
W : 1,643 / L : 583 / H : 393(mm)
Weight : 31.5kg
W : 1,225 / L : 700 / H : 187(mm)
Weight : 21.5kg
W : 723 / L : 563 / H : 187(mm)
Weight : 12kg
T-3000MT refrigerating capacity (Ambient 30ºC / 2400RPM)
Controller
: Main automatic temperature controller (Relay box separation type)
Evaporator
: TM21 (Displacement: 215cc / 10 Cylinders)
T-3000MT

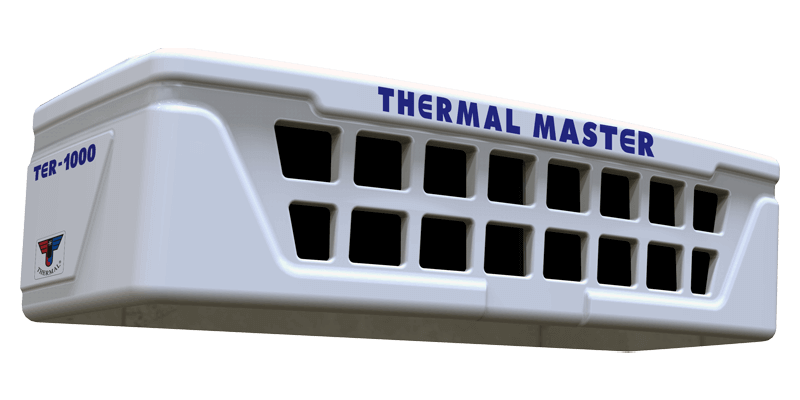

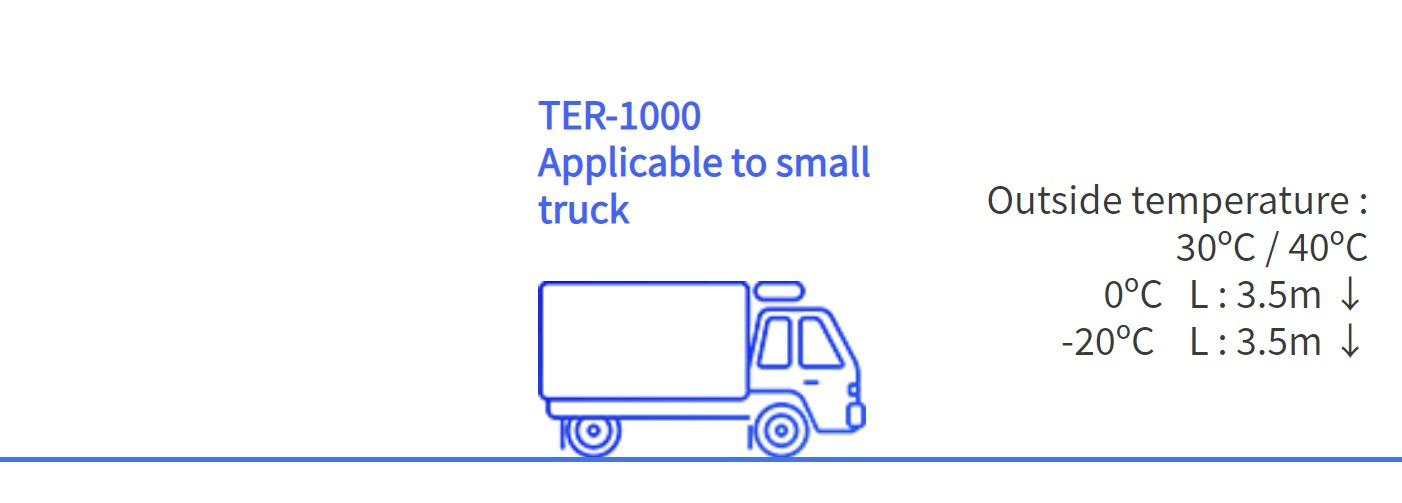

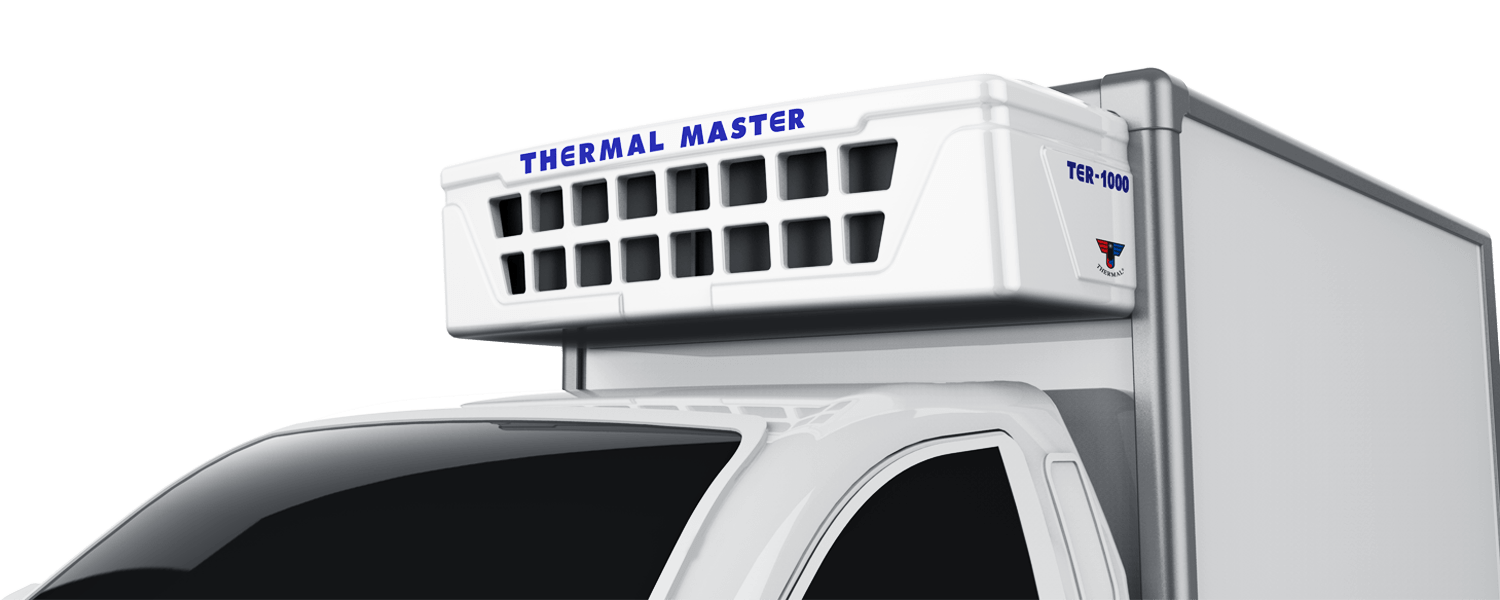

TER-1000

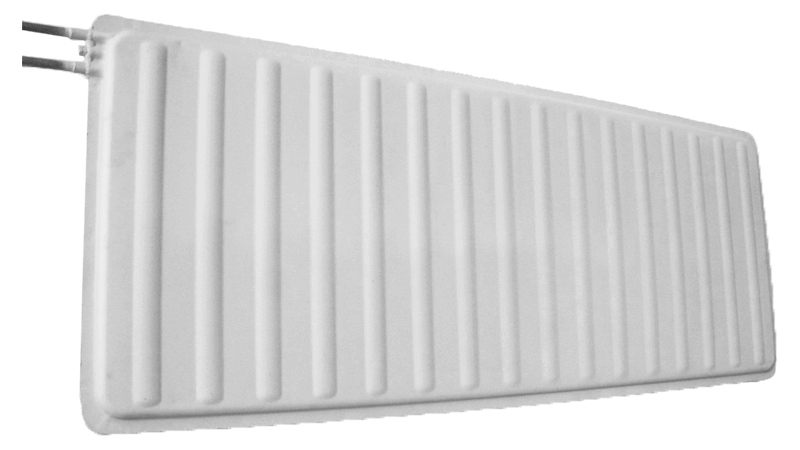

Cold storage system
1. A system that maintains inside temperature using the heat generated by the freezing process of gel-type filler called PCM, which is embedded in cold storage panel.
2. Mostly used in transport of deep-frozen product such as ice cream.
W : 1,590 / L : 588 / H : 432(mm)
Weight : 136kg
W : 1,190 / L : 485 / H : 432(mm)
Weight : 43kg
TER-1000 / 2500 refrigerating capacity (Exterior temperature of 30ºC / 2400RPM / Evaporator air recirculation)
